Many of our clients are surprised to learn how much we are capable of doing. Dozens of in-house capabilities — every chip cut, every weld laid, by the same team that owns the job.
These are the cornerstone capabilities behind most of the work that comes through ATM. Everything else lives just below — and we still run it in-house, every day.

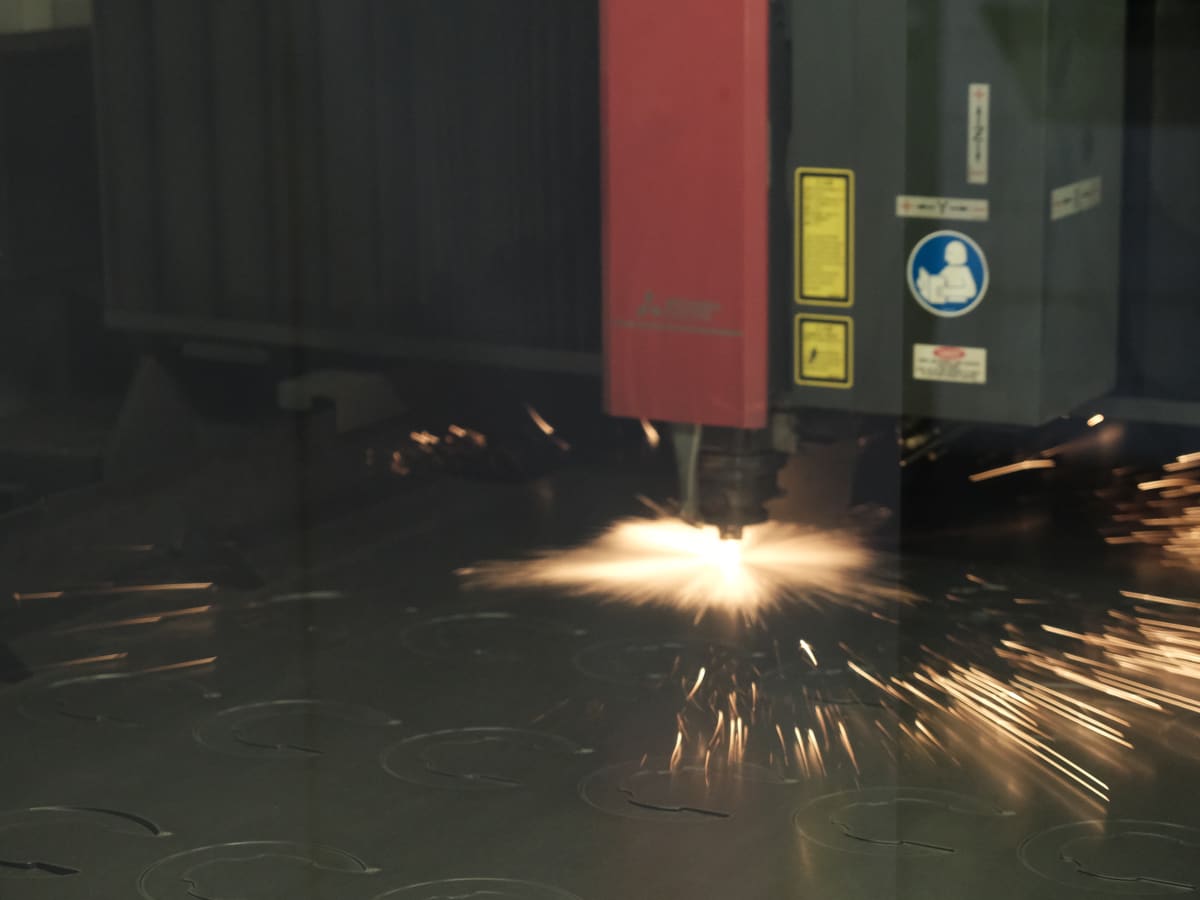

SHEET LASER Two fiber sheet lasers — Mitsubishi GX-F ADVANCED and a Bodor — for fast, precise cuts on a wide range of metals from 0.04″ to 1″ thick. AI-assisted cutting and automated head adjustment keep operator input low and throughput high.

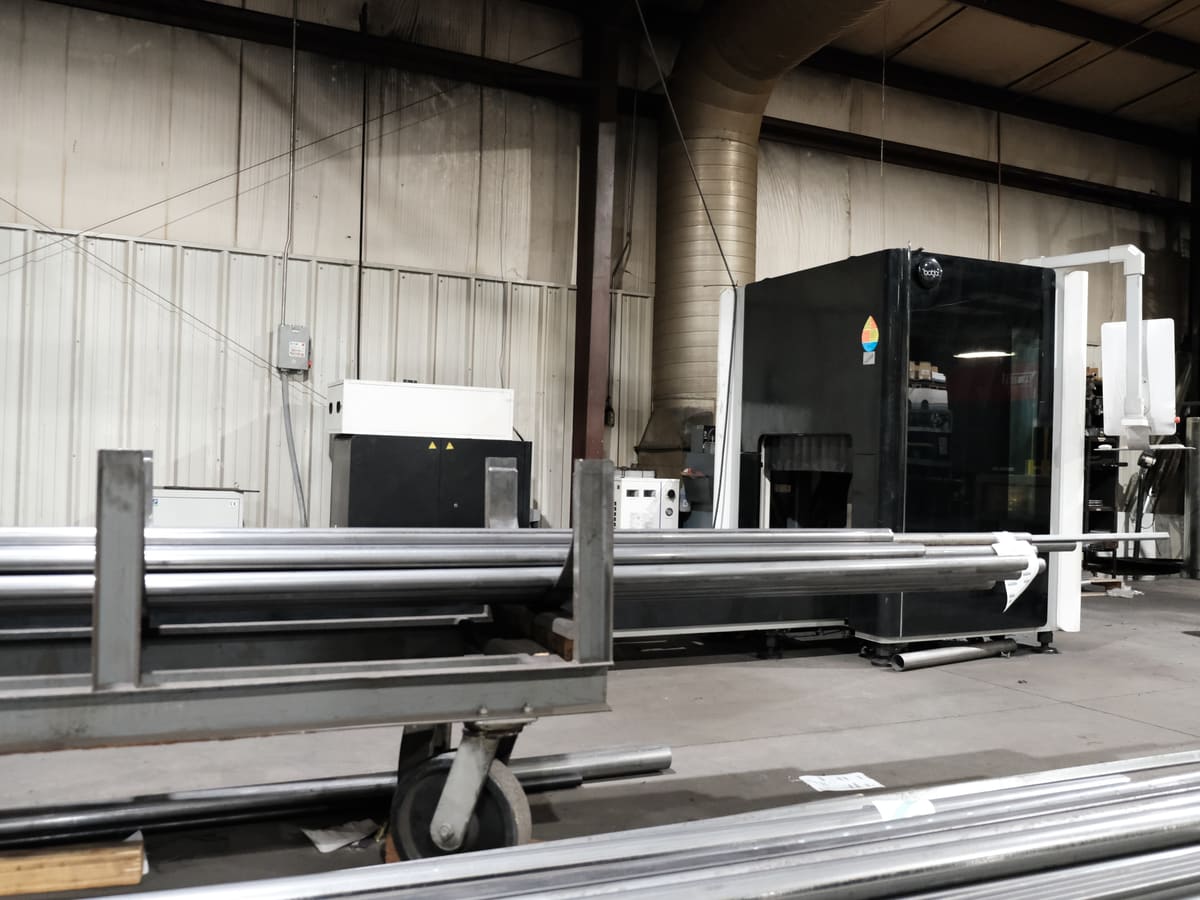

TUBE LASER Bodor fiber tube laser cuts rounds, squares, rectangular tube, plus angle and channel — holes, slots, miters, and copes in a single setup. Parts come off ready to weld or assemble, with no secondary drilling or sawing.

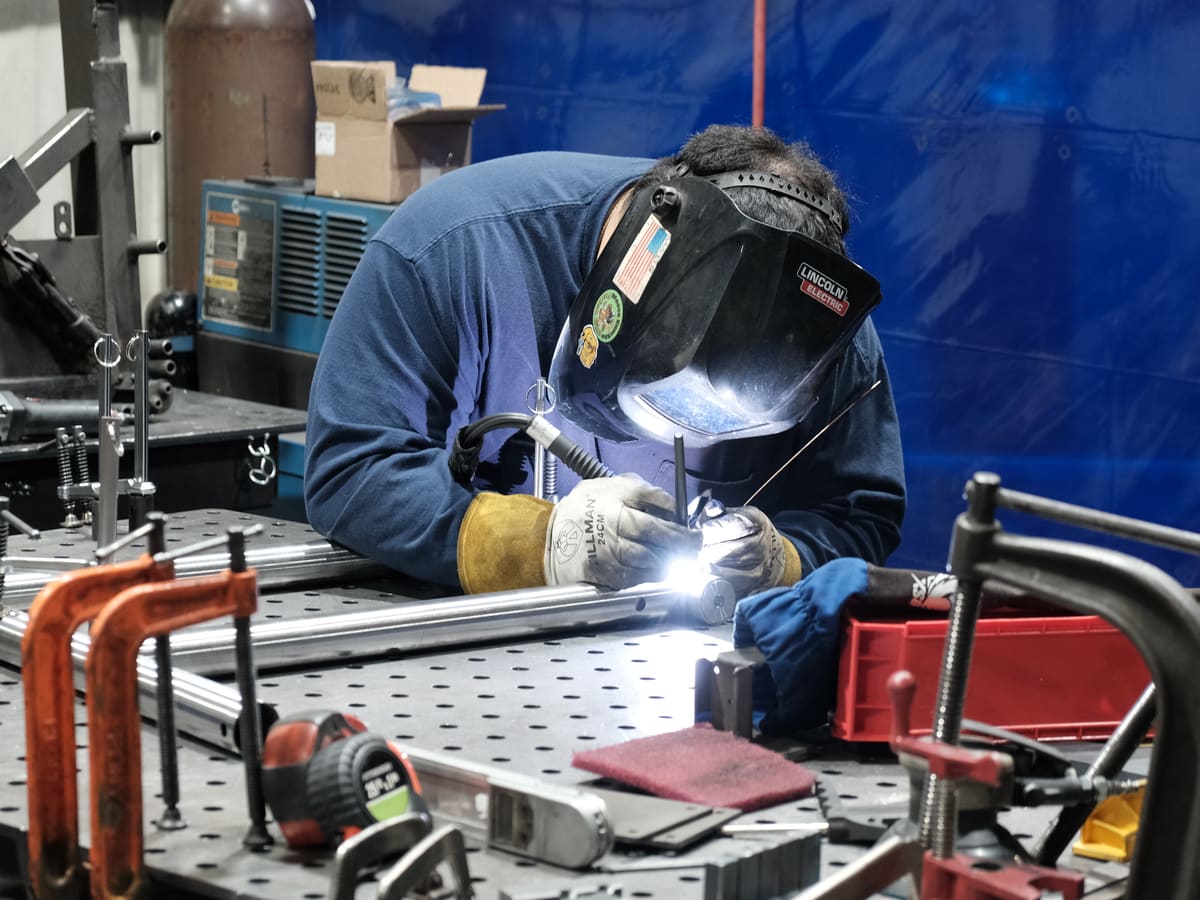

WELD Trained welders capable of MIG and TIG welding, plus brazing, to exact specifications. Whether you need a complex assembly welded or thousands of parts, we have the capability to get the job done right.

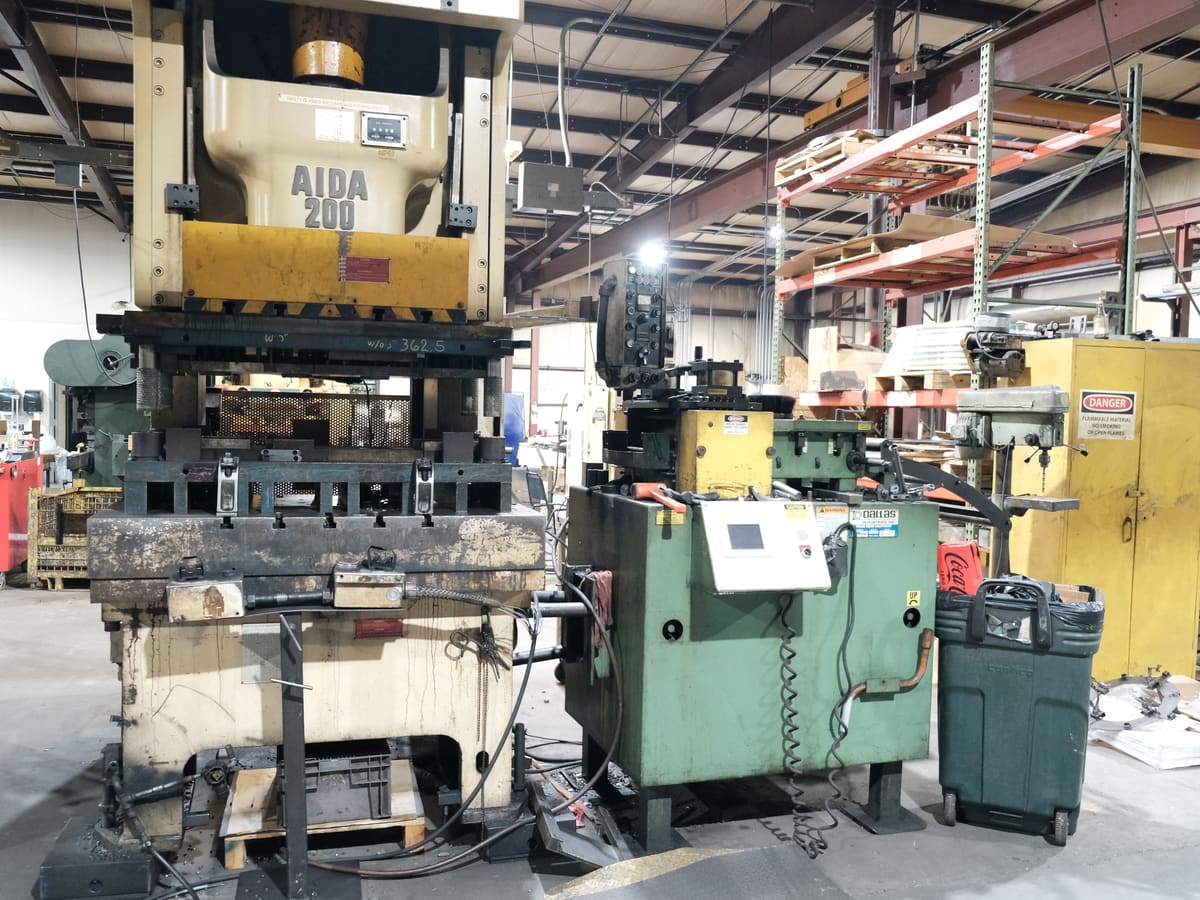

STAMP Stamping presses with complete die sets designed and built by our tool room. Mostly rolled metal, with some parts running in under a second per stroke. We also use these for complex bends that exceed press-brake range.

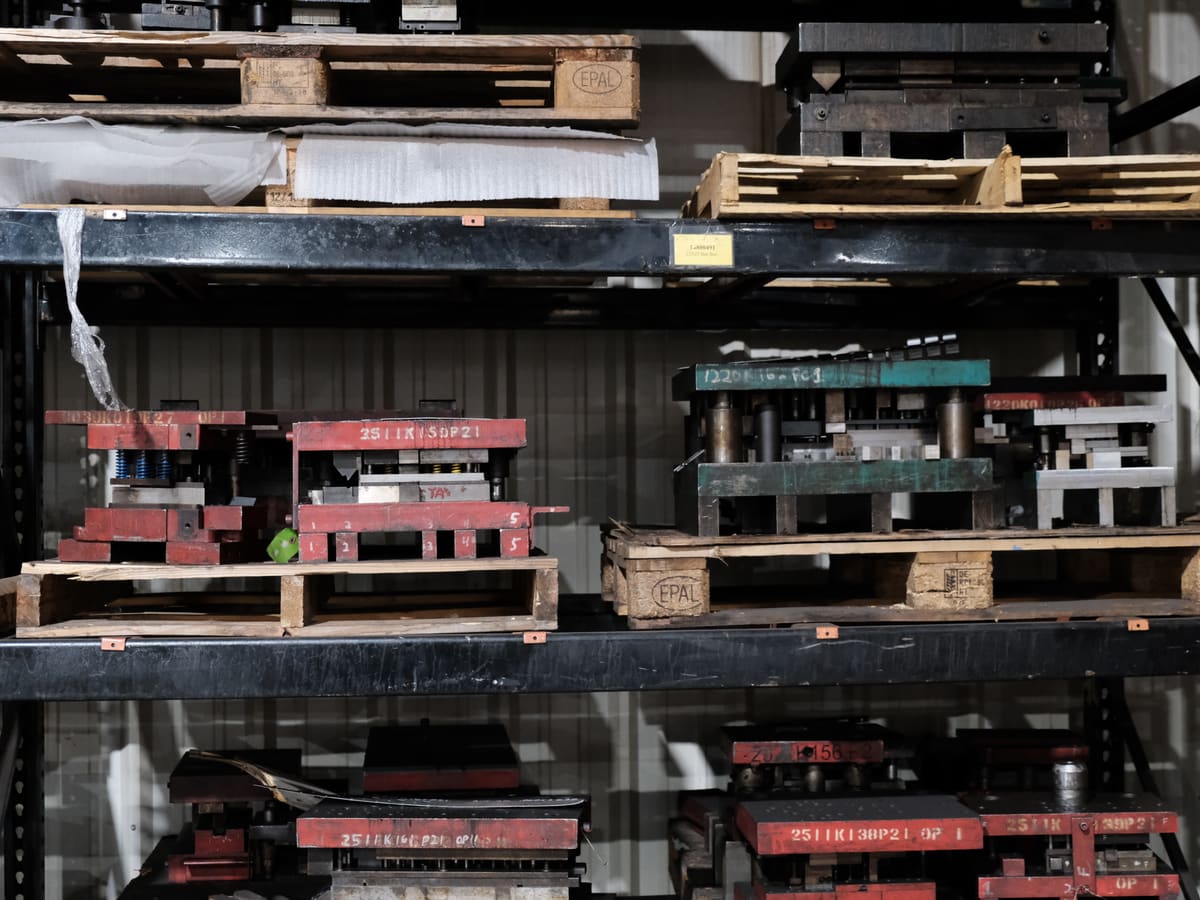

TOOL · DIE From start to finish, we have the equipment and expertise for every step in the precision mold-making process, and tool & die design and manufacturing.
5-AXIS A ZPS TAJMAC 1210 full 5-axis machining center plus a HAAS VF3YT that's 5-axis-trunnion-capable. Aerospace-grade cutting across multiple axes simultaneously for precise, intricate parts.
TURN Multiple 2-axis CNC turning centers. Parts up to 18″ in diameter and 40″ long — or longer, if 3″ in diameter or smaller. Any custom part or component, to exact measurements.

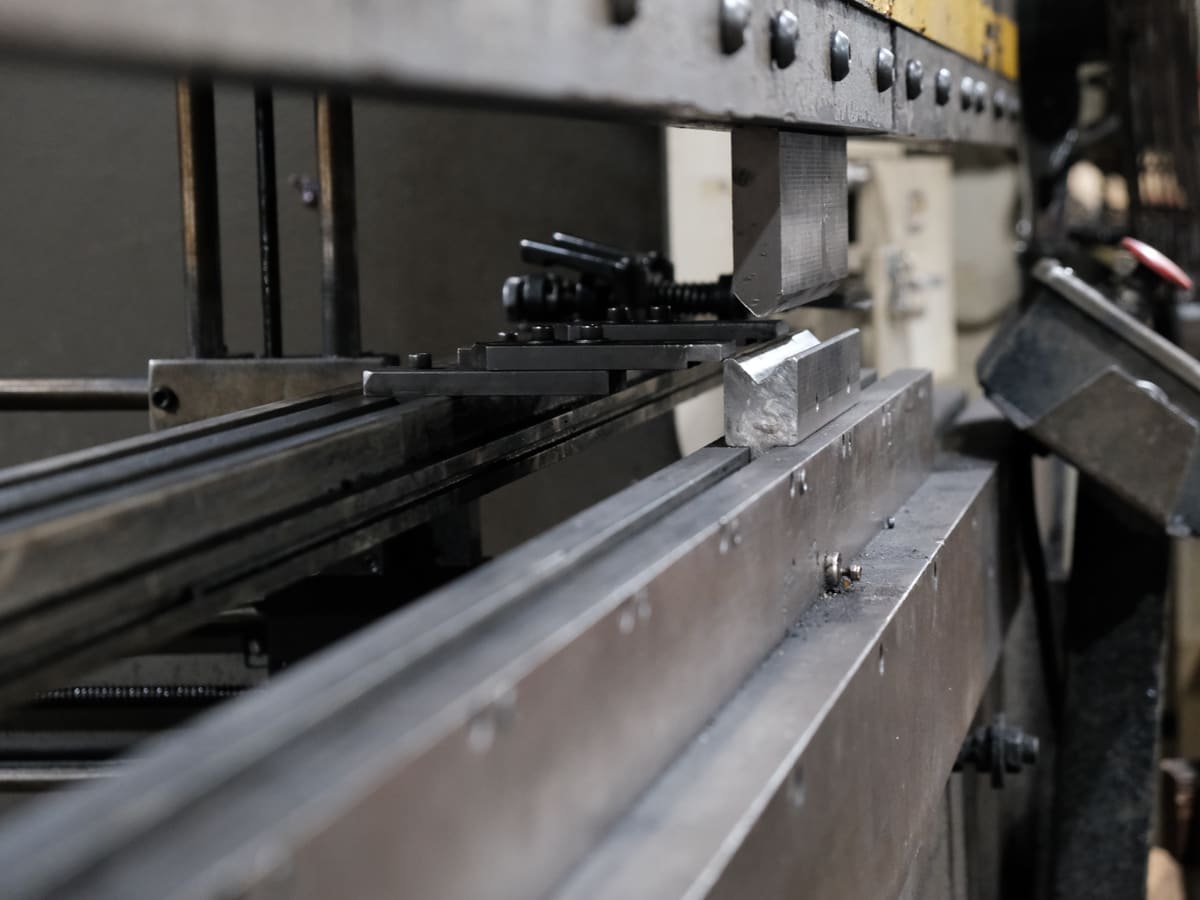

BRAKE 100-ton and 200-ton brakes for forming sheet metal into any shape or angle. Custom tooling made in-house.

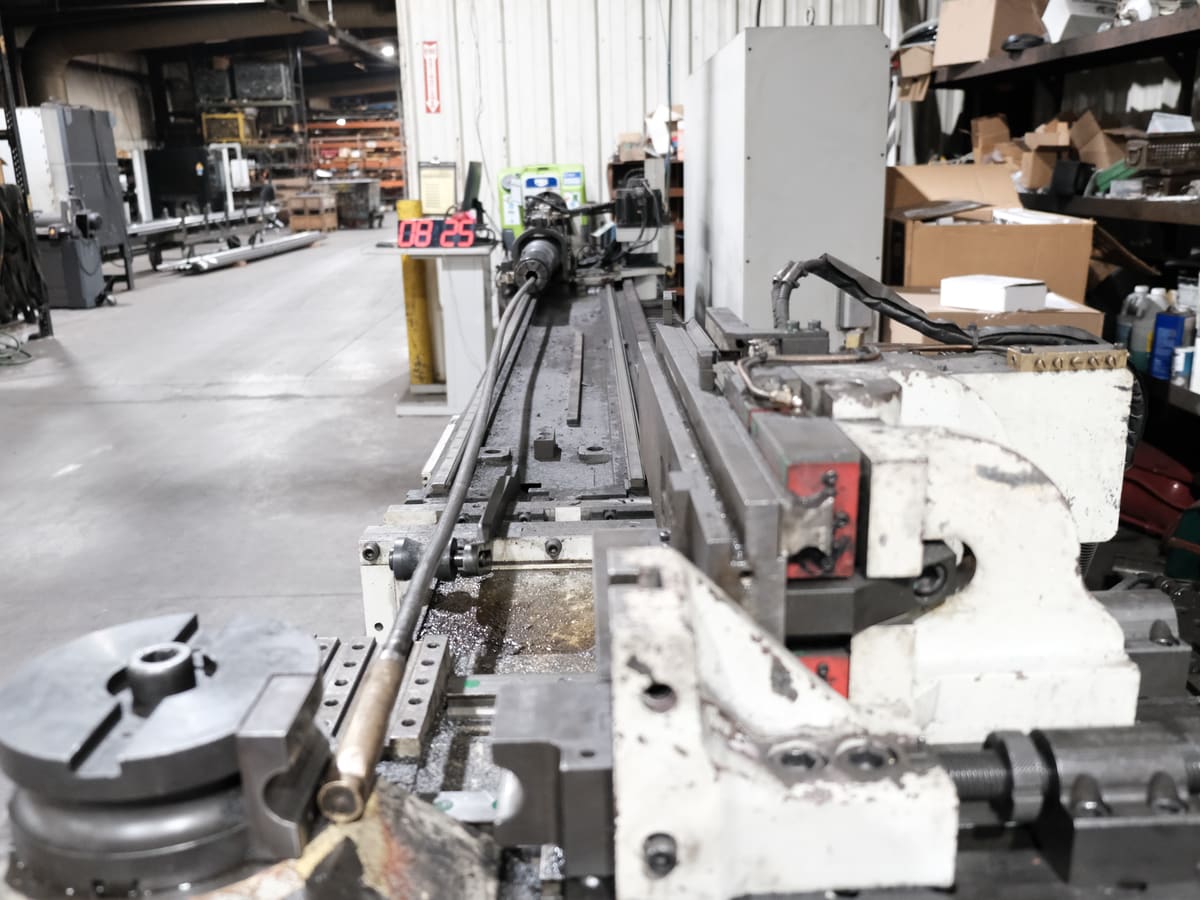

TUBE We have the capability to bend metal tubes into a variety of designs.
These don't headline the page, but they run every day — and they finish the work that the top capabilities start.
Cuts intricate contours and cavities in hard metals without heat-soften and re-harden cycles. Wire EDM to ±0.0001″ (2.5 μm).
Refined finish while holding the closest possible tolerance dimension.
The most accurate method for precision holes — complex shapes and holes to the tightest tolerances.
Coordinate-measuring inspection — an important technique for increasing and verifying manufacturing quality.
Multiple sanding and finishing machines to prep parts for whatever finish our customers require.
Our shop is powered by the Mitsubishi GX-F ADVANCED Series Fiber Laser — an industry-leading system built for precision, speed, and efficiency. With cutting-edge artificial intelligence and automation, this machine delivers high-quality results with minimal operator input.
We have a 100-ton and a 200-ton brake press, which allow us to form sheet metal into different shapes and angles. Our tool & die expertise allows us to make any press brake tooling we need to satisfy our customers' requirements.
Our stamping presses utilize complete die sets, which our knowledgeable tool room staff can design and build. These machines mostly use rolled metal and can run some parts in less than one second per part. We can also use these machines for more complex bends that our press brakes cannot achieve.
At Advanced Tool & Machine, we have trained professionals who are capable of MIG and TIG welding, as well as brazing, to exact specifications. Whether you need a complex assembly welded or thousands of parts, we have the capability to get the job done right.
Multiple sanding and finishing machines are utilized at Advanced Tool & Machine to prep parts for whatever finish our customers require.

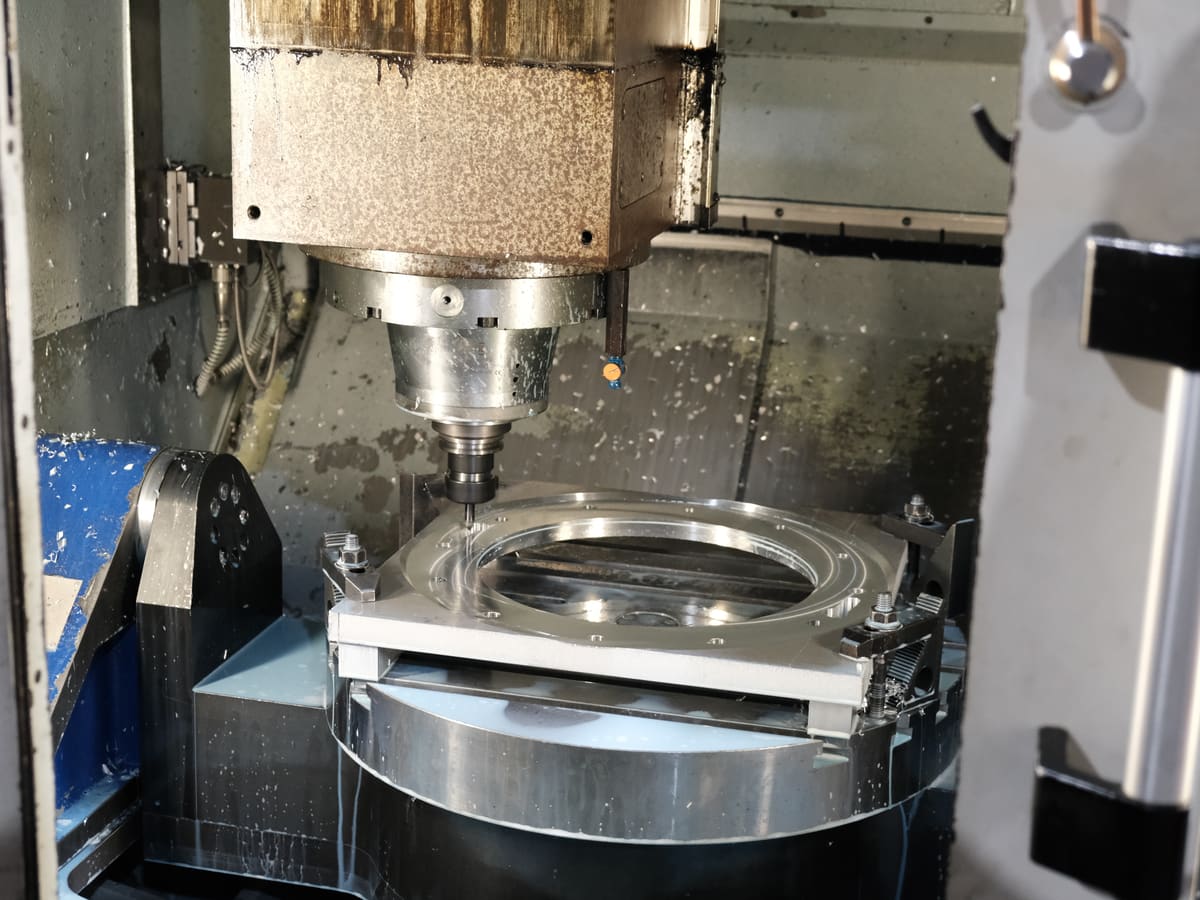

Our ZPS TAJMAC 1210 is a full 5-axis, trunnion-style machine with a work envelope of 24 × 24 × 24″ (X Y Z) and a 900-lb weight limit. It has a full 360-degree C axis and 190-degree A axis (±95°). Backing it up is a HAAS VF3YT that is 5-axis-trunnion-capable, so we can add a second 5-axis setup whenever a job calls for it.
Our multiple Vertical Machining Centers (VMC) range in capacity from 16″ × 30″ × 20″ all the way up to 80″ × 30″ × 30″. This allows us to machine a large range of part sizes.

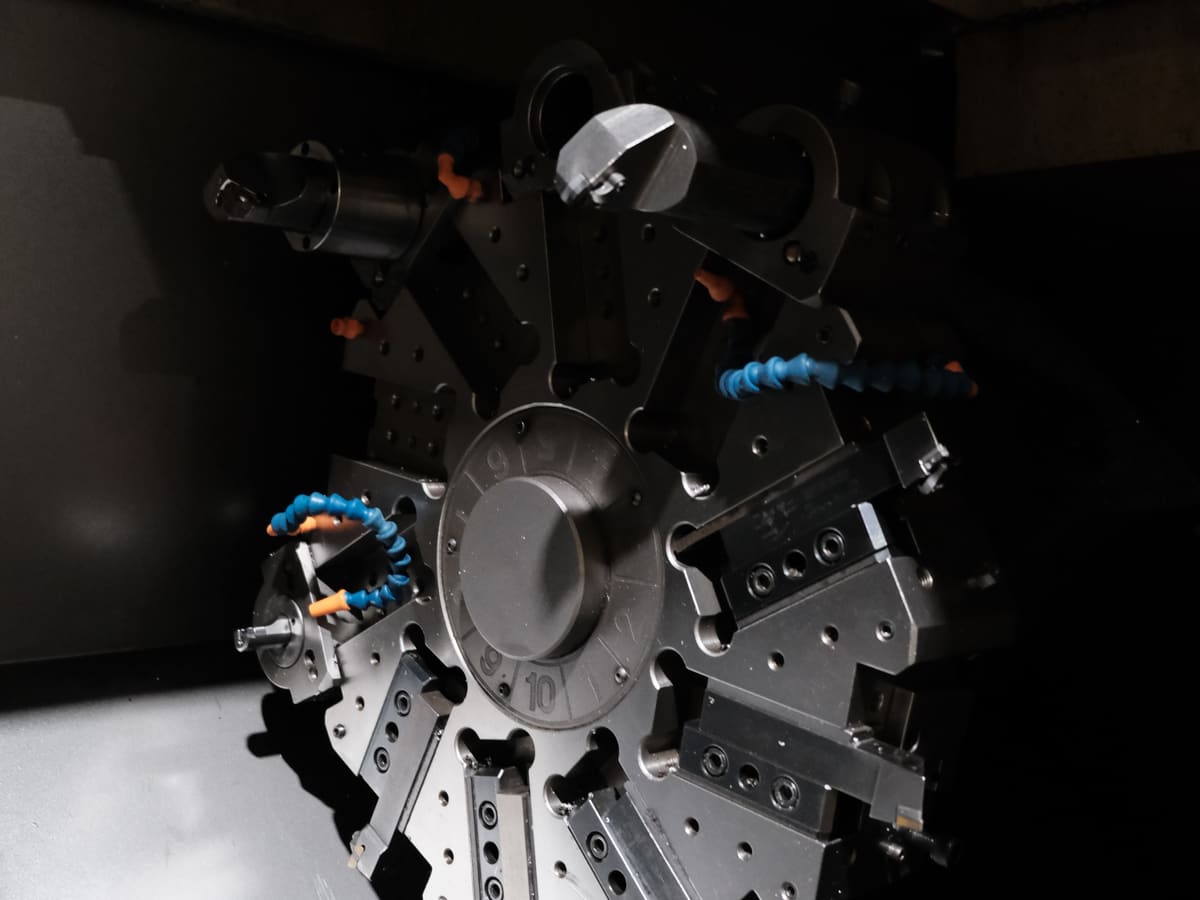

We have multiple 2-axis CNC Turning Centers. We can turn parts up to 18″ in diameter and up to 40″ long. Longer parts can be made if they are 3″ in diameter or smaller.
We have many capabilities for grinding to exact specifications, including: Wet Surface Grinding, Hand Surface Grinding, Jig Grinding, and Centered OD Grinding.
EDM Machining allows for many advantages:
Send us drawings, specs, or just a sketch — we'll come back with a clear estimate and lead time.
